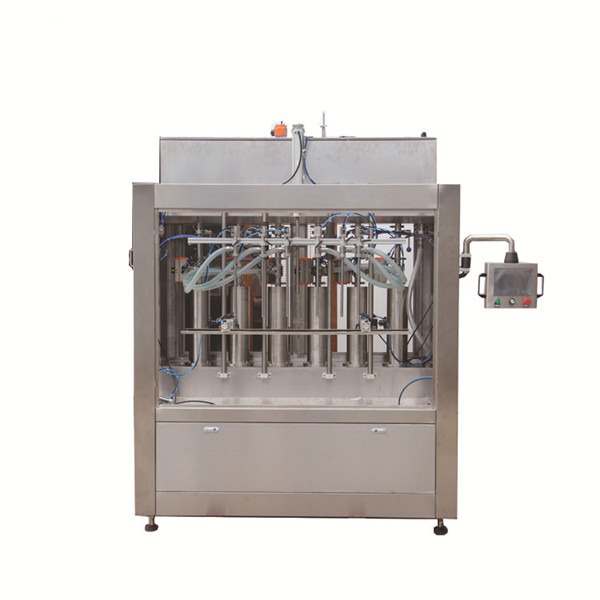

A dishwashing liquid filling machine is a type of automated equipment that is designed to fill bottles or containers with dishwashing liquid. It typically uses a series of pumps, sensors, and nozzles to accurately measure and dispense the correct amount of dishwashing liquid into each container. These machines can be used in industrial or commercial settings to increase production efficiency and accuracy.
仕様書
食器洗い機用液体充填機
1. With CE Certificate,Meet the GMP
2. Material:304or316Stainless Steel
3. Pay:T/T,L/C
説明
EUのCE
ISO9001
GMPの要件を満たす
longlife of service, low mainteinance rate
メイン機能
マシンは、ボトルのカウント、充填、キャッピングプロセスを自動的に完了することができる高度な高精度充填機です。
特徴
1.コンパクトな構造で、見栄えがよく、操作が簡単で、高度に自動化されています。
2.材料と接触する部品は、清掃が簡単なステンレス製です。
3.充填量は、精度を確保するためにフィルムバルブで制御されます。
4.高速で高精度の充填バルブにより、漏れが発生しません。
5.それは非常に有効な帽子の供給システムが装備されています。
言語オプション
Monitor language: English, Spanish, Arabic, Portuguese, Russian, Italian, French, Korean.
主な特徴：
1. Linear type piston filling machine special designed for sticky liquid,such as detergent, shampoo, lotion,lubricant oil,edible oil, etc. international advanced technology, already approved by well-known companies such as Bayer. High filling accuracy, simple structure, stable working, widely application. Counting of bottles inlet, qualitative filling, bottles outlet are done automatically.
2. Not only the whole 13 filling nozzles dosage can be rough adjusted, but also each single filling nozzles dosage can finely adjusted.
3.さまざまな仕様の変更に役立つ多くのパラメータを記憶でき、すべての充填量はタッチスクリーンで調整できます。
4. Liquid control for normal working liquid level control, sound and light alarm device, guarantee the liquid level at normal condition; also can achieved for inlet valve/pump control.
5. Material outlet joints all adopts quick-assembling type (clamp type), easily for clean. Sealing gaskets adopts fluorine rubber O-ring; sanitary connecting pipes.
6. With protection case, drip gutter, main materials are made of SS304, wetted parts are made of SS316L.
主な技術的パラメータ
| 項目 | 名 | 技術的パラメータ |
| 01 | 機械寸法（L * W * H） | 2200mm * 1400mm * 2800mm |
| 02 | 機械重量 | 約1400Kg |
| 03 | コンテナ開口部内径 | ≥φ35mm |
| 04 | 適切な容器 | 1リットル.2リットル |
| 05 | コンテナの高さ | 80-350mm |
| 06 | 電源 | AC 380V; 50HZ |
| 07 | 力 | 5Kw |
| 08 | 充填精度 | ≤±1％ |
| 09 | 空気源 | 0.6Mpaの安定したきれいな圧縮空気 |
| 11 | 充填ノズルの数 | 13 |
| 12 | コンベヤーの高さ | 900mm±50mm |
| 13 | 容量 | ≤3200bottles/ hour（テストとして水を取る） |
| 14 | 送り方向のボトル | 左から右へ |
クイック詳細
タイプ：充填機
条件：新しい
アプリケーション：化学
包装タイプ：ボトル
包装材料：木
自動グレード：自動
駆動型：空気圧
電圧：220v
パワー：3KW
原産地：上海。中国（本土）
銘柄：NPACK
寸法（L * W * H）：2200mm * 1400mm * 2800mm
重さ：1400
認証：CE
アフターサービスの提供：海外の機械の修理に対応できるエンジニア
素材：SS304
PLC：パナソニック
タッチスクリーン：パナソニック
Dishwashing liquid filling machines are specifically designed to package dishwashing liquids into various types of containers. These machines are essential for businesses in the cleaning industry who want to streamline their packaging process and increase their productivity. There are several types of dishwashing liquid filling machines available in the market, each with its unique features and benefits.
One of the most popular types of dishwashing liquid filling machines is the volumetric filler. This machine operates on the principle of displacement and uses a piston to fill the containers with the precise amount of liquid required. This type of machine is highly accurate and is suitable for packaging liquids with a constant viscosity.
Another type of dishwashing liquid filling machine is the gravity filler. This machine works on the principle of gravity and uses a funnel to fill the containers with the liquid. The liquid is then dispensed into the containers based on the height of the liquid in the funnel. This type of machine is ideal for packaging low viscosity liquids and is very cost-effective.
The third type of dishwashing liquid filling machine is the overflow filler. This machine works on the principle of overflow and uses a hopper to fill the containers with the liquid. The liquid is then dispensed into the containers based on the height of the liquid in the hopper. This type of machine is ideal for packaging high viscosity liquids and can handle liquids with large particles.
When choosing a dishwashing liquid filling machine, it is important to consider factors such as the size of your production line, the viscosity of the liquid, the type of containers you will be using, and the speed of production you require. It is also important to consider the ease of maintenance and the reliability of the machine.
In conclusion, a dishwashing liquid filling machine is a crucial investment for businesses in the cleaning industry. With the right machine, businesses can increase their productivity, improve the quality of their packaging, and save time and money. When choosing a dishwashing liquid filling machine, it is important to consider factors such as the size of your production line, the viscosity of the liquid, the type of containers you will be using, and the speed of production you require.
